BLE 5.0 Bluetooth CAN Adapter
3-Second Engineer Understanding
CAN BUS → BLE 5.0 wireless bridge (plug-and-play, no firmware change required)
Short Introduction
A professional BLE 5.0 CAN adapter that bridges industrial CAN BUS networks to Bluetooth wireless communication, offering transparent transmission, security authentication, and stable industrial-grade performance.
Product Description
This BLE 5.0 Bluetooth CAN adapter acts as a reliable bridge between industrial CAN BUS systems and Bluetooth wireless networks. It replaces traditional cables by converting CAN BUS data into wireless Bluetooth signals for flexible, cable-free communication.

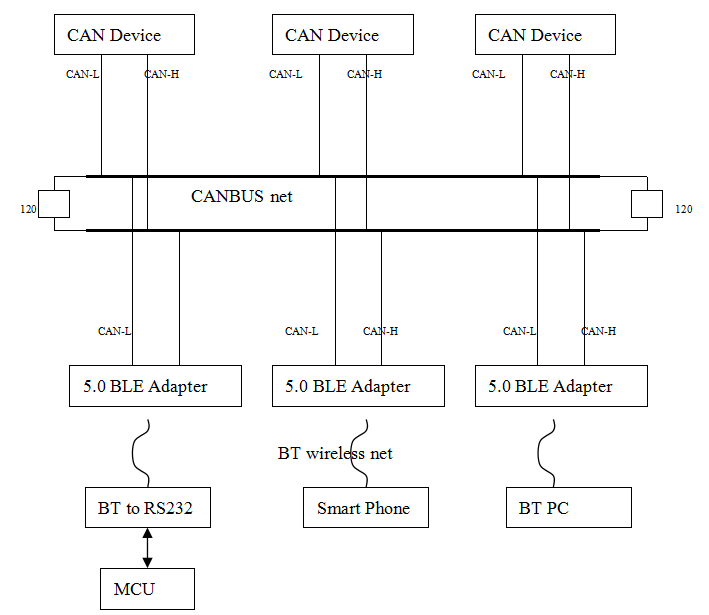

Any standard Bluetooth device including smart phones, PCs, PDAs, and Bluetooth serial adapters can access the CAN BUS through this module. It supports plug-and-play operation and realizes transparent data transmission without complicated programming or configuration.
The adapter features built-in security authentication and data encryption to ensure safe and reliable communication. When used in paired mode, authentication runs automatically with the default password 1234.

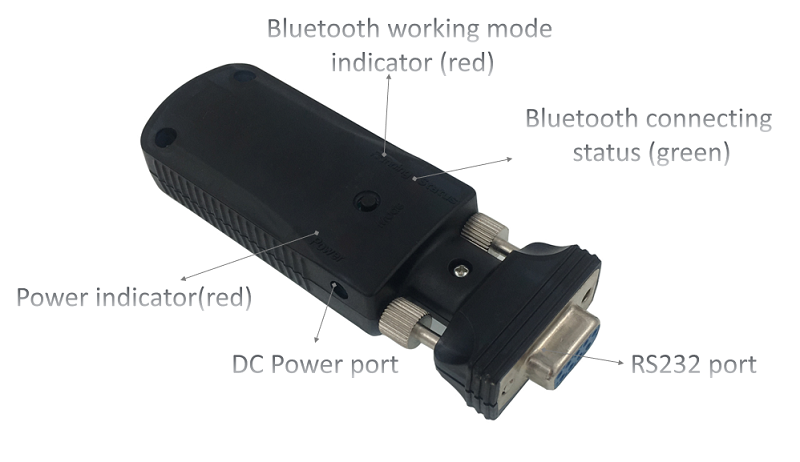

Equipped with clear LED indicators for power, working status, and Bluetooth connection, this module allows real-time status monitoring. It is widely used in industrial control, automotive electronics, field instrumentation, and industrial automation systems.
Why Choose This Adapter
- No firmware modification required
- Plug-and-play deployment
- Industrial-grade stability
- Lower cost compared to redesigning hardware
- Isolated CAN interface for safety
- Security authentication & encryption
Typical Use Cases
- Upgrade CAN BUS equipment to wireless communication
- Replace CAN cables in industrial automation
- Remote monitoring and diagnosis of field equipment
- Wireless access for automotive and industrial CAN devices
Key Features
- Compliant with BLE 5.0 technology for stable and low-power wireless communication
- Seamlessly bridges CAN BUS networks to Bluetooth wireless connections
- Supports transparent data transmission with plug-and-play ease of use
- Provides security authentication and data encryption for safe transmission
- Supports master-slave working mode for flexible deployment
- Industrial-grade design with high ESD and surge protection
- Clear LED indicators for power, working mode, and connection status
- Wide operating temperature range for harsh industrial environments
- Compact size for easy installation in limited spaces
Industrial Reliability
Industrial-grade design with high ESD protection, wide temperature range, and stable performance for harsh environments.
Meta Description
Industrial BLE 5.0 CAN adapter for CAN BUS to Bluetooth wireless conversion. Transparent transmission, security authentication, plug-and-play, ideal for industrial automation and control systems.
Meta Keywords
BLE 5.0 CAN adapter, Bluetooth CAN module, CAN BUS wireless converter, industrial CAN adapter, BLE to CAN module.
Technical specification:
Bluetooth port electronic characteristics
| Standard | BLE 5.0 standard | |
| RF output power | CLASS 2 | |
| Working band | ISM 2.402～2.483GHz | |
| Antenna | On-board antenna | |
| Spectrum extension | FHSS | |
| Sensitivity | ＜ -95dBm at ＜ 0.1% BER | |
| Achieved protocols | LL, MP, L2CAP, ATT, GAP, GATT | |
| Working mode | Master and slave | |
| Security | Security authentication, data encryption | |
| Maximum working distance | 10M in open air | |
CAN port electronic characteristics
| Transmission mode | Differential signal |
| Transmission medium | Twisted pair or other |
| Node number | 112 |
| Communication interface | Isolated CAN |
| Connector | DB9 Male |
| Signal pin | CAN-H，CAN-L，GND |
| Maximum common mode voltage | +5V |
| Minimum common mode voltage | 3.6V |
| Differential signal input range | 0V～5V |
| Receiver input sensitivity | 900mV |
| Receiver input impedance | ≥20kΩ |
| Supported CAN baud rate | 15K~1M |
| Supported CAN working mode | OSM、Not OSM |
Electrical characteristics of the whole device
| Power | External power adapter or DB9 port, 6V 250mA rated current | |
| LED indicators | Power, connection mode , working mode | |
| High energy transient noise protection | 400W | |
| ESD | ±30 kV IEC 61000-4-2 Contact discharge | |
| ±15 kV IEC 61000-4-2 Air gap discharge | ||
| ±15 kV EIA/JEDEC Human body model | ||
| Working environment | Operating temperature | -20℃ ~ +80℃ |
| Storage temperature | -40℃ ~ +125℃ | |
| Humidity | ＜ 90% | |
| Size | 99mm*34mm*17mm | |
Power consumption:
Bluetooth port electronic characteristics
| Mode | Testing conditions (slave device) | Max mA | Min mA |
| Work | With data transmission | 30.0 | 21.0 |
| Stand by | Without data transmission | 21.0 | 15.2 |
