BLE 5.0 Bolt Adapter
3-Second Engineer Understanding
CAN / RS485 / RS232 → BLE 5.0 wireless bridge (plug-and-play, no firmware change required)
Short Introduction
Industrial BLE 5.0 Bolt Adapter for converting CAN / RS485 / RS232 field bus to Bluetooth wireless, enabling safe, long-distance, cable-free equipment access and control.
Product Description
The BLE 5.0 Bolt Adapter serves as a professional bridge between industrial field buses and Bluetooth wireless networks. It seamlessly converts CAN, RS485, and RS232 bus data to Bluetooth signals and vice versa, acting as an ideal cable replacement solution.

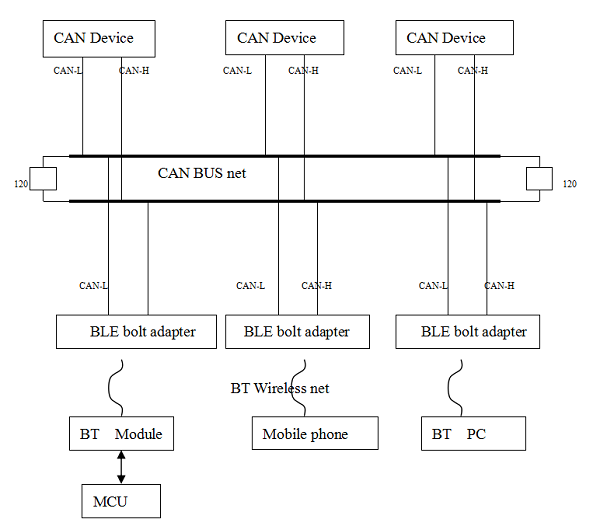

Any standard BLE wireless device can connect to the field bus through this adapter to communicate and interact with bus devices. It is especially suitable for hard-to-reach scenarios such as confined spaces, locked cabinets, or hazardous areas, allowing operators to access and control equipment remotely and safely.

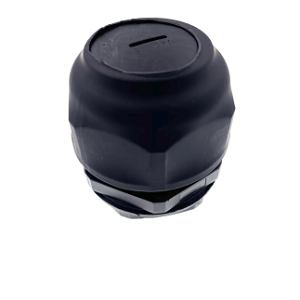

With a rugged enclosure and unique bolt-style design, the adapter can be mounted on any flat surface via a 50mm through hole. Paired with basic protection accessories, it performs reliably in harsh factory automation environments.
The adapter supports three data conversion modes for CAN bus: transparent transmission, transparent with marker, and Modbus RTU conversion. For RS485 and RS232 communication, it provides direct transparent transmission. All parameters can be easily configured via Bluetooth.
Why Choose This Adapter
- No firmware modification required
- Plug-and-play deployment
- Industrial-grade stability
- Lower cost compared to redesigning hardware
- 3-in-1 interface: CAN/RS485/RS232
- Rugged bolt-mount design
Typical Use Cases
- Upgrade legacy fieldbus equipment to wireless
- Replace cables in confined or locked cabinets
- Remote control and monitoring in hazardous areas
- Wireless access for factory automation and field instruments
Key Features
- BLE 5.0 technology for stable, long-range wireless communication up to 100m
- Integrates CAN, RS485, RS232 to Bluetooth conversion in one unit
- Supports transparent transmission and Modbus RTU protocol conversion
- Rugged, industrial-grade enclosure with 50mm through-hole mounting
- Ideal for remote equipment access in confined or hazardous locations
- Security authentication and data encryption for safe communication
- Wide bus compatibility and flexible parameter configuration via Bluetooth
- High ESD and surge protection for reliable industrial use
Industrial Reliability
Rugged industrial-grade construction with high ESD and surge protection, suitable for harsh factory environments.
Meta Description
BLE 5.0 Bolt Adapter for CAN/RS485/RS232 to Bluetooth conversion. Rugged design, remote access, Modbus support, ideal for industrial automation and difficult installation environments.
Meta Keywords
BLE 5.0 Bolt Adapter, CAN to Bluetooth, RS485 to Bluetooth, RS232 to Bluetooth, industrial field bus wireless adapter.

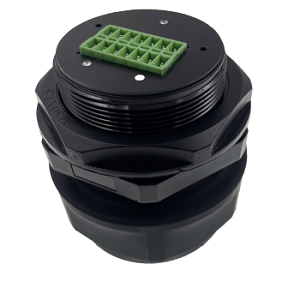

PIN Define
 |
Pin No | Signal |
| 1 | VCC | |
| 2 | GND | |
| 3 | RS232-RXD | |
| 4 | RS232-TXD | |
| 5 | RS232-CTS | |
| 6 | RS232-RTS | |
| 7-8-9 | GND | |
| 10 | RS485-A+ | |
| 11 | CAN-L | |
| 12 | RS485-B- | |
| 13 | CAN-H | |
| 14 | GND |
Bluetooth port electronic characteristics
| Bluetooth Specification | BLE 5.0 | |
| RF output power | CLASS 1 | |
| Working band | ISM 2.400～2.483GHz | |
| Antenna | Internal antenna | |
| Spectrum extension | FHSS | |
| Receiving Sensitivity | ＜ -95dBm at ＜ 0.1% BER | |
| Protocols | LL、SMP、L2CAP、ATT、GAP、GATT | |
| Working mode | slave | |
| Security | Security authentication, data encryption | |
| Maximum working distance | 100M in open air | |
| Application | PC, MCU, Mobile phones, etc | |
CAN port electronic characteristics
| Transmission mode | Differential signal |
| Transmission medium | Twisted pair or other |
| Node number | 120 |
| Communication interface | Isolated CAN |
| Signal pin | CAN-H，CAN-L，GND |
| Maximum common mode voltage | +5V |
| Minimum common mode voltage | 3.6V |
| Differential signal input range | 0V～5V |
| Receiver input sensitivity | 900mV |
| Receiver input impedance | ≥20kΩ |
| Supported CAN baud rate | 15K~1M |
RS485 port electronic characteristics
| Transmission mode | Differential signal |
| Transmission medium | Twisted pair or other |
| Node number | 256 |
| Communication interface | Isolated CAN |
| Signal pin | RS485-A+, RS485-B- |
| Maximum common mode voltage | +12V |
| Minimum common mode voltage | -7V |
| Differential signal input range | ±2~6V |
| Receiver input sensitivity | ±200mV |
| Receiver input impedance | ≥12kΩ |
RS232 port electronic characteristics
| Transmission mode | Single-ended |
| Transmission medium | Twisted pair or other |
| Signal pin | TXD RXD RTS CTS GND |
| Voltage range | ±3~15V |
Electrical characteristics
| Name | BLE Bolt Adapter | |
| Power | 12V 1A rated current | |
| High energy transient noise protection | 400W | |
| ESD | ±30 kV IEC 61000-4-2 Contact discharge | |
| ±15 kV IEC 61000-4-2 Air gap discharge | ||
| ±15 kV EIA/JEDEC Human body model | ||
| Working environment | Operating temperature | 0℃～+60℃ |
| Storage temperature | -40℃ ~ +125℃ | |
| Humidity | ＜ 90% | |
| Size | 70(L) * 70(W) * 80(H)mm | |
Power consumption
In normal mode, the parameters are the default values:
| Mode | Testing conditions | Current average mA |
| Work | With data transmission | 21 |
| Stand by | Without data transmission | 26 |
